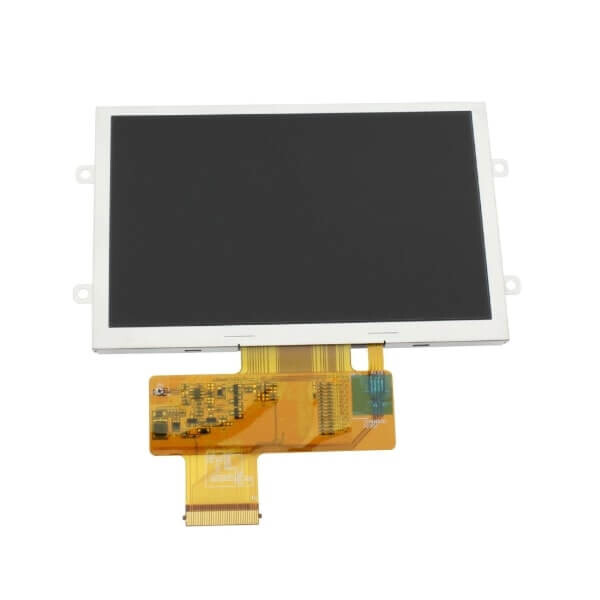

Tianma Endüstriyel 5" TFT LCD Ekran - No Touch, 800x480, RGB 24 Bit, 40P

Tianma Endüstriyel 5" TFT LCD Ekran - No Touch, 800x480, RGB 24 Bit, 40P

Tianma Endüstriyel 5" TFT LCD Ekran Teknik Özellikler

Brand:TIANMA
Model P/N:TM050RDZG03-00
Diagonal Size:5.0"
Panel Typea-Si: TFT-LCD, LCM
Resolution:800(RGB)×480, WVGA 188PPI
Pixel Format:RGB Vertical Stripe
Active Area:108(W)×64.8(H) mm
Bezel Opening:111.1(W)×67.9(H) mm
Outline Dimension:120.7(H)×77.8(V)×5.9(D) mm
Treatment:Antiglare
Luminance:1000 cd/m² (Typ.)
Contrast Ratio750:1 (Typ.) (TM)
View Direction:6 o'clock
Response Time:20/30 (Typ./Max.)(Tr+Td)
Viewing Angle:80/80/70/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode:TN, Normally White, Transmissive
Support Color:16.7M 50% NTSC
Light Source:WLED [3S6P] , 50K hours
Designed For:Industrial
Frame Rate:60Hz
Interface Type:Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Power Supply:3.3V (Typ.)
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C
