Robotis Engineer Kit 1 (3 Different Robot Architecture & 8 Seperate R+Task Lesson Content)
Product code:
01.01.084.034Barcode:
01.01.084.034
(0)
68.445,51
TL
Transfer price
:
66.392,14
TL
%
3
extra discount
Featured Information
16:00 ya kadar siparişlerde AYNI GÜN kargo!
Add to Favorite
CollectionAlarm Price
More
Robotis Eğitim Seti
Robotis Engineer Kit 1
(Unboxing in Korean)

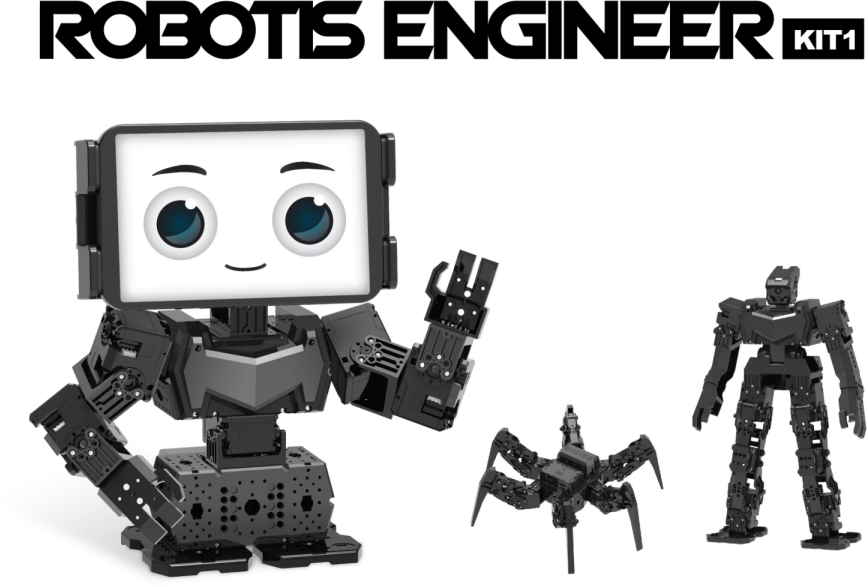

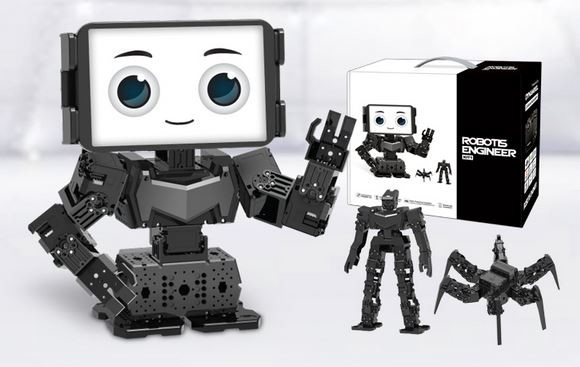

Robotis Engineer Kit1 is the latest robotics education kit from Robotis. With this kit, Robotis enables users to create robotic structures in 3 different architectures (humanoid, Biomimetric hexapod and AI-based robot). The motors used for joint control in Robotis Engineer Kit1 are 2XL series smart actuators, which are the latest product of the Robotis Dynamixel series and provide 360-degree control in 2 axes on the same actuator. Robotis makes it easy to assemble the components in the Robotis Engineer Kit1 with booklets that provide detailed explanations in assembling the components, while a special application that can be downloaded on smartphones allows you to quickly run demo codes on 3 different robots. Again, you can connect to robots and program the controller (CM550) with R+Engineer and R+Task programs familiar from other Robotis controllers.
Robotis Engineer Kit1 contains a variety of programming content for schools and other educational institutions. ROBOTIS provides educational resources using Task and Motion, its self-developed software that integrates TinkerCAD to teach 3D printing. For programming purposes, 8 tutorials on R+Task and 24 ready-made tutorials on TinkerCAD are available.
Robotis Engineer, an intelligent, AI-based, multi-articulated robot kit, allows you to use a smart device to demonstrate AI capabilities in applications such as education, hobbies, entertainment and robot competitions. During the use of this kit, the user will explore skills such as AI, 3D printing, coding, image processing and robotic manipulation to support technological career development.
Get to Know Robot Architectures!

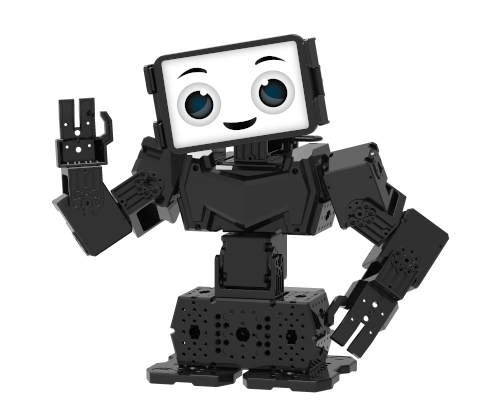

Dr.R: It is a robot made for artificial intelligence studies. With the help of the sensors on it, it can recognize objects, faces and voices and interact with the user. By selecting the appropriate mode via R+engineer, demo codes or typical AI applications can be seen and joint motor settings can be made.

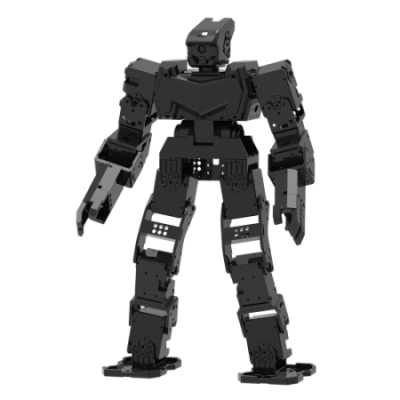

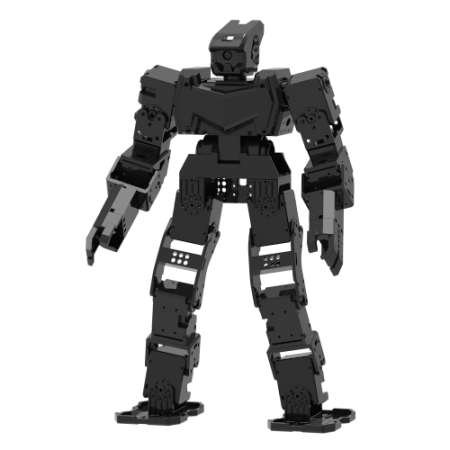

MAX-E1: Max-E1 is a 38 cm tall humanoid robot. It mimics human movements with the new generation 2XL430 Dynamixel motors that make up the robot's 12 joints. Parallel jointed legs enable stable Pi-pedal movements to be performed in different combinations. It can perform functions such as remote control, gesture recognition and hand clap detection via R+Engineer and smartphone.

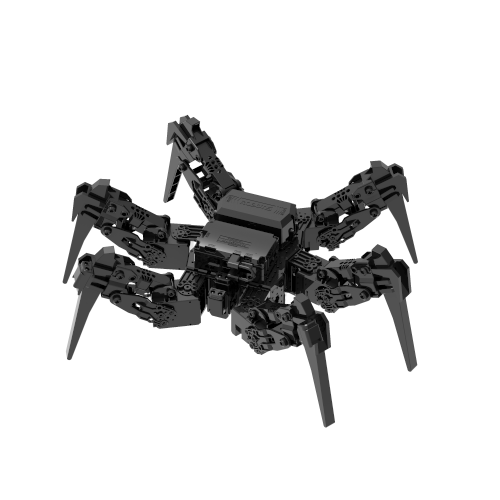

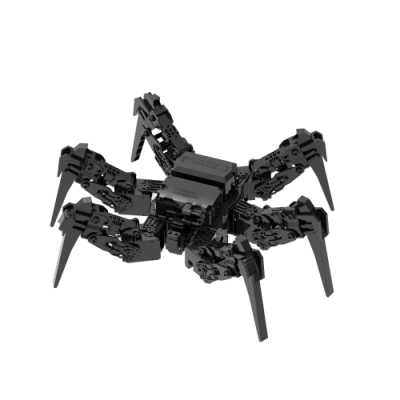

SPI: It is a biomimetric robot and can mimic the movements of arthropods. By adapting the connection methods, the user can form different species of arthropods. It can be controlled via R+Engineer in SPI. With the appropriate mode selected, it can perform remote control, simultaneous music playback via phone and an optional number of hand claps.
What are the advantages of Robotis Engineer Kit1?
| Advanced Programming Capabilities  | o Based on machine learning and Tensor Flow to identify and recognize objects Using Object Recognition o Enabling human-robot interaction with facial expressions based on user input o Face recognition and tracking using a camera |
Modular Actuator  | o Gearbox structures, microcontrollers and different communication protocols with intelligent actuators that incorporate all the advantages of the DYNAMIXEL brand. o Dual-axis configurations (for X-Y movement) and built-in features provide user-friendly assembly options. |
Multiple Application Integration  | o Dedicated App for ROBOTIS Engineer Kit (Android/IOS) o Edit and create robot movements using your PC or smart device app. |
Joint Based Movement  | o Easily build multi-joint robots of different structures including biped and hexapod designs using DYNAMIXEL smart actuators! o Includes a competition-ready biped robot structure using parallel link structures. |
3D Printing Curriculum Support  | o Includes a systematic 3D printing design curriculum of 24 chapters o Includes educational content from the operation of 3D printers to print management practices. |
Pyton Programming Support  | o Supports coding using Python programming language and free ROBOTIS software. |
Systematic Approach for Robotic Education  | o Next generation education/research robot that gives the flexibility to acquire and use industry 4.0 key technologies such as electronics, AI, 3D printing, coding, vision, etc. step by step. |
Featured Hardware Components
CM-550 X1 | o ARM Cortex M4 o 2 Modes (Mode & start) o Microphone (x1) o Buzzer (1) o Voltage Sensor (x1) o Gyro, Accelerometer (x1) o Bluetooth BLE (x1) o RGB LED (x3) o Sensor Port 5 pins (x5) o Dynamixel-X connector 3 pins (x6) |
| Dynamixel 2XL series robot actuator (2XL430-W250-T)(x6)  | o Stall torque: 1.5Nm (12V, 1.4A) o No load Speed: 61 rpm (@12V) o Weight: 98.2g o Dimensions: (GxYXD) (36x46x36)mm o Gear Ratio: 257.4:1 o Materials: all-metal gearbox structure and engineering plastic |
Lithium Battery (x1) | Type: lithium polymer o Voltage: 11.1V (3-cell 3S1P) o Buffer voltage: 12.6V o Lowest voltage: 9.6V o Capacity: 1300mAh o Discharge rate:15c o Dimensions: 70x36x24 mm o Weight 102g |
Shipping Content
Links
Robotis Engineer Kit e-manuel
