reComputer Industrial J3011 AI Edge Box (Orin Nano 8GB) - 40TOPS
Product code:
10.03.081.109Barcode:
10.03.081.109
(0)
66.594,58
TL
+
VAT
Transfer price
:
64.596,74
TL
+
VAT
%
3
extra discount
CollectionAlarm Price
More
SEEED-110110193More
Nvidia

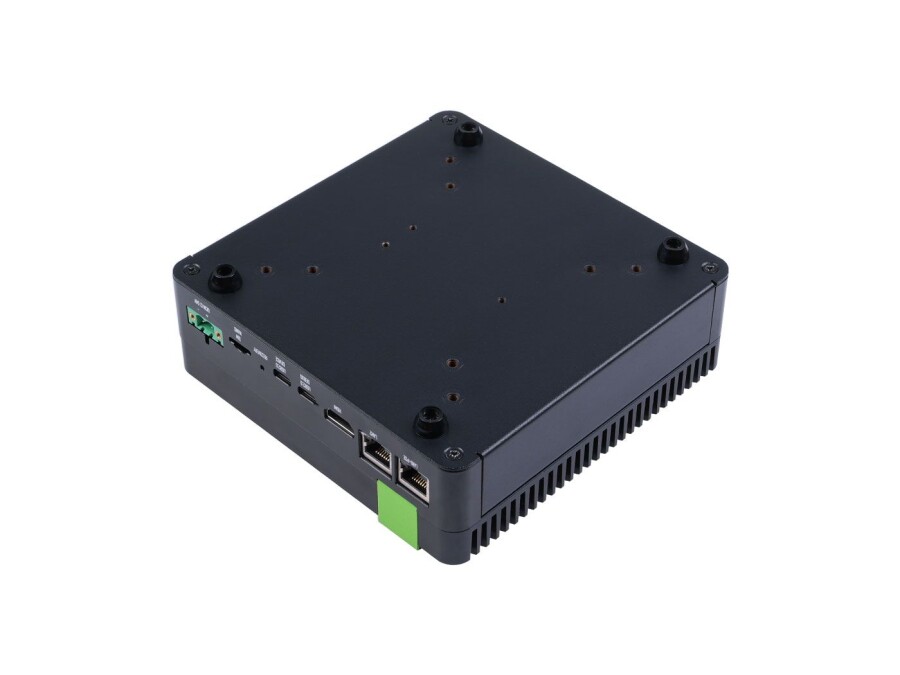

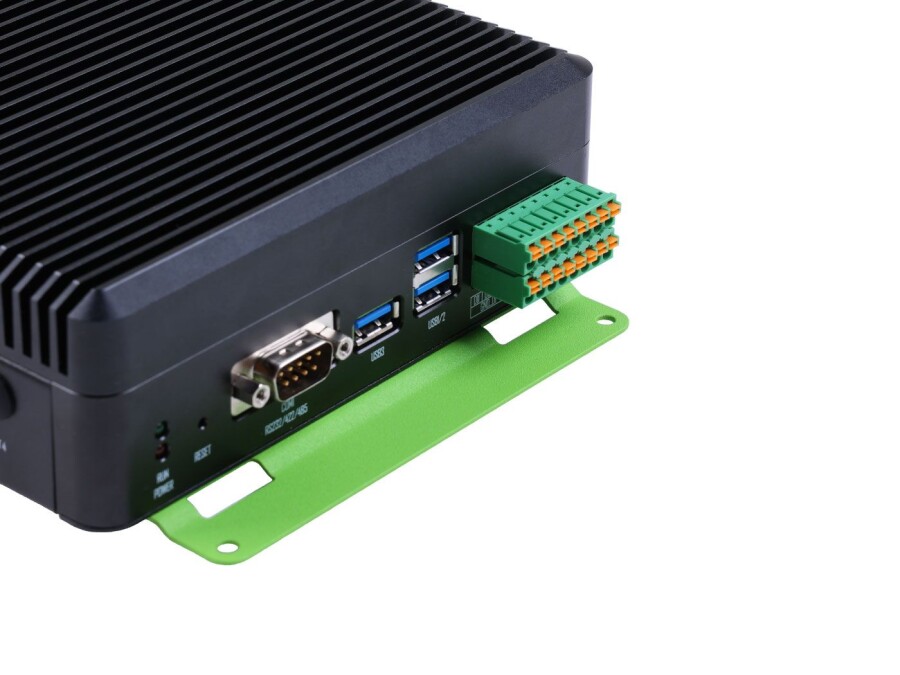

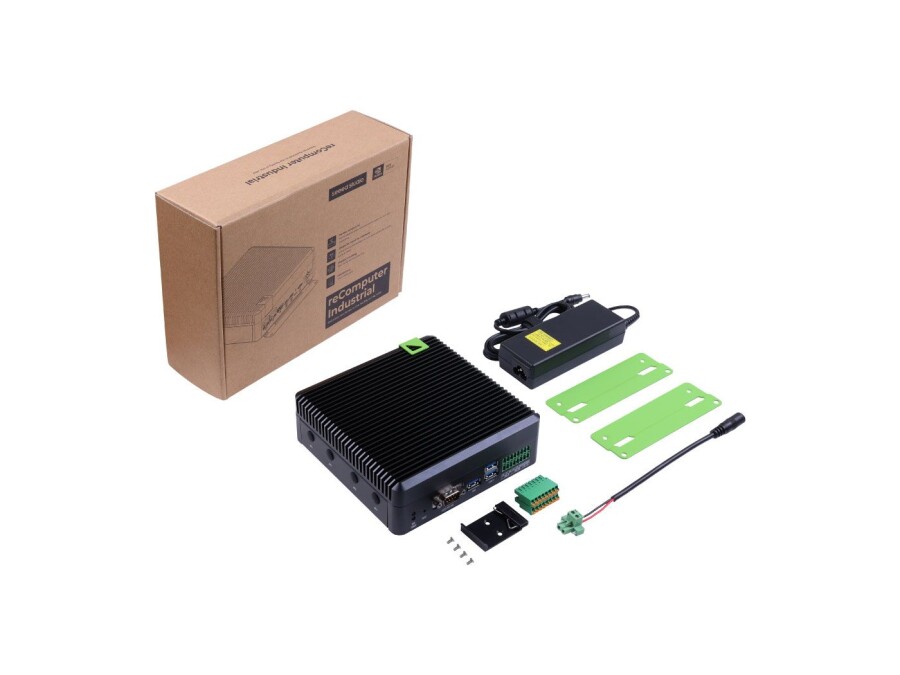

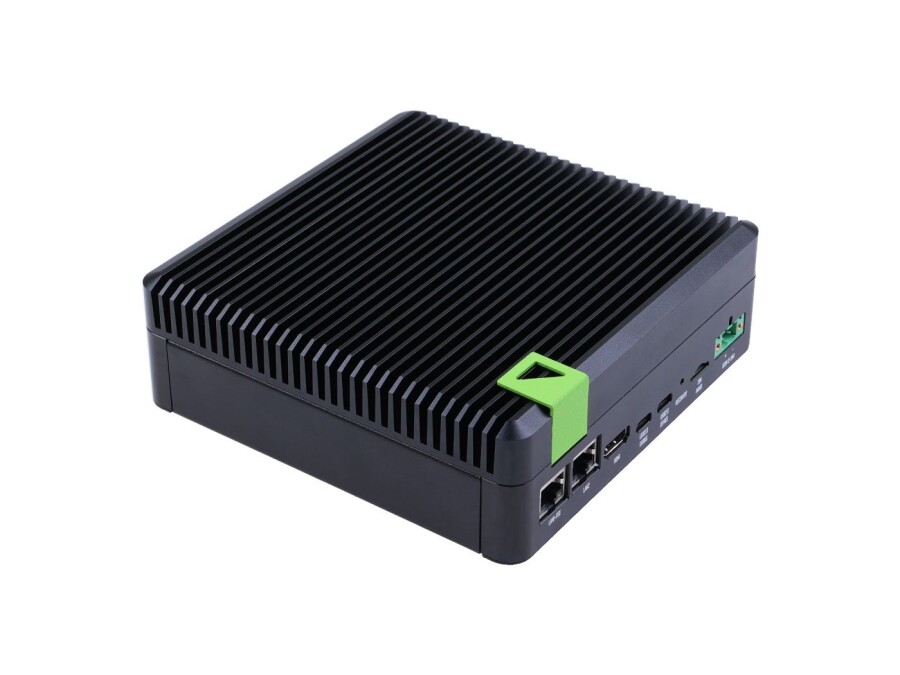

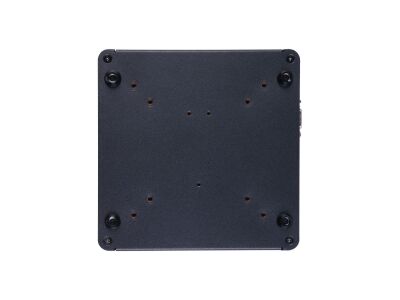

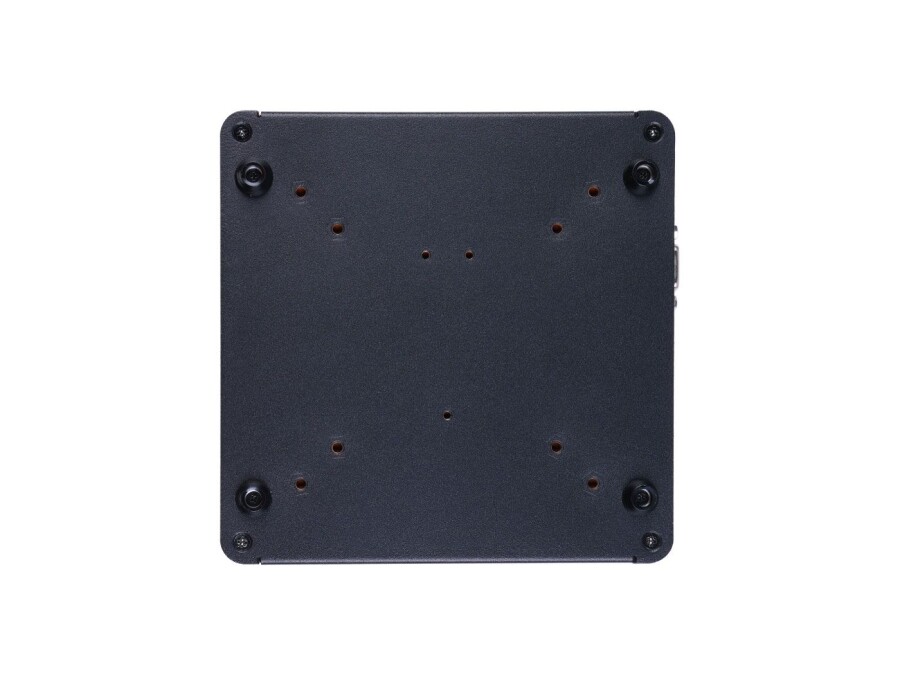

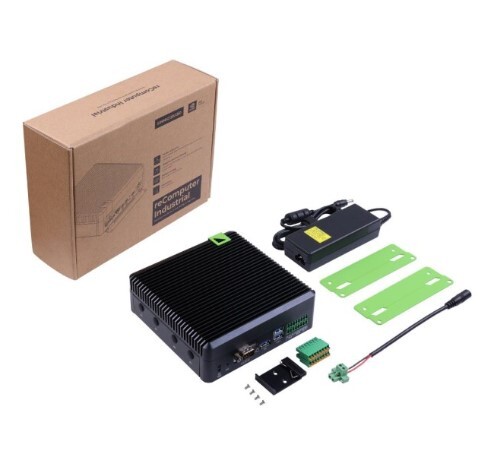

reComputer Industrial J3011 Yapay Zeka (AI) Edge Box (Orin Nano 8GB) - 40TOPS
reComputer Industrial J3011 Yapay Zeka (AI) Edge Box, 40 TOPS AI performansı için NVIDIA Jetson Orin™ Nano 8GB modülüne sahiptir ve 2 RJ-45 Ethernet bağlantı noktası, 1 RS232/422/485 ve CAN bağlantı noktası vb. dahil olmak üzere hibrit bağlantıları destekler. Fanless ve çok yönlü montaj seçenekleri, daha zorlu ortamlarda ve daha ağır yüklerde kullanım imkanı sağlar.
reComputer Industrial J3011 Yapay Zeka (AI) Edge Box Özellikler
| Jetson OrinNano System on Module | ||
| Al Performans | reComputer Industrial J3011 - Orin Nano 8GB, 40 TOPS | reComputer Industrial J3010 - Orin Nano 4GB, 20 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 | |
| Memory | 8GB 128-bit LPDDR5 68 GB/s | 4GB 64-bit LPDDR534 GB/s |
| Video Encoder | 1080p30 supported by 1-2 CPU cores | |
| Video Decoder | 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265) | |
| Carrier Board | ||
| Saklama alanı | 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included) | |
| Ağ | Ethernet | 1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15 W) 1x LAN2 RJ45 GbE (10/100/1000Mbps) |
| I/O | USB | 3x USB3.2 Gen1, 1x USB2.0 Type C (Device mode), 1x USB2.0 Type C For Debug UART & RP2040 |
| Display | 1x HDMI Type A; 1x DP | |
| Fan | 1x4 pin Fan Connector (5V PWM) | |
| DI/DO | 4x DI,4x DO,3x GND_DI,2x GND_DO,1x GND_ISO,1x CAN | |
| COM | 1x DB9 (RS232/RS422/RS485) | |
| SIM | 1x Nano SIM card slot | |
| Genişleme | Mini PCIe | Mini PCIe for 4G/LoRaWAN® (Module optional) |
| WiFi | Support SMD Wi-Fi/Bluetooth (Customized production, please contact [email protected]) | |
| M.2 Key B | M.2 Key B support 4G/5G (Module optional) | |
| Fan | Fanless, passive heatsink1*Fan connectors(5V PWM) | |
| TPM | 1x TPM 2.0 connector (Module optional) | |
| RTC | 1x RTC socket (CR1220 included), 1* RTC 2-pin | |
| Camera | 2x CSI (2-lane 15pin) | |
| Güç | DC 12V-24V Terminal block 2 pin | |
| 19V Power Adapter(without power cord) | ||
| Mekanik | Dimensions (W x D x H) | 159mm x 155mm x 57mm |
| Weight | 1.57kg | |
| Installation | Desk, DIN rail, wall-mounting, VESA | |
| Fiziksel değişkenler | Operating Temperature | -20 ~ 60°C with 0.7m/s |
| Operating Humidity | 95% @ 40 °C (non-condensing) | |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | |
| Shock | 50G peak acceleration (11 msec) | |
