FlashForge Creator 4 A IDEX 3D Printer (Extruder-HT): Engineering Filament

Name: FlashForge Creator 4 A IDEX 3D Printer (Extruder-HT): Engineering Filament
Brand: FlashForge
SKU: 22.09.04.05
Price: 394180.13 TRY
Availability: OutOfStock

Product Code : 22.09.04.05

328,483.44 TL + VAT

394,180.13 TL (VAT Included)

Notify When Discounted

Add Comment

Out of stock Notify When Restocked

Features
Payment Options
Comments (0)

FlashForge Creator 4 A IDEX 3D Printer ( Extruder-HT): Material Selection Flexibility in Commercial and Industrial Mass Production

FAnother professional product from FlashForge that can provide industrial and commercial mass production: Creator 4-HT Dual Extruder 3D Printer! The most important feature in FlashForge Creator 4 printer is the swappable extruder heads according to the material you prefer in your professional printing. This product you are reviewing has an -HT type extruder and supports advanced filament structures such as PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT type general and engineering plastics. Other extruder heads, Extruder-HT and Extruder-HS, are interchangeable with extruder Extruder-F, they can be exchanged. Creator 4 has different features with each extuder head, you can check these features in the table below:


Extruder-F For 85A Flexible Filament	Ekstruder-HT for Engineering Plastic	Ekstruder-HS For Carbon Fiber
Printing Speed: 100mm/s	Printing Speed: 200mm/s	Printing Speed: 150mm/s
Filament diameter: 2.85mm	Filament Diameter: 1.75mm	Filament Diameter: 1.75mm
Printing Temperture: 260ºC	Printing Temperture: 320ºC	Printing Temperture: 360ºC
Supported Material: TPU85A / TPE / TPB /TPC	Supported Material: PC / PA / PP / PETG /ASA ABS / PLA / PC-ABS / PAHT	Supported Material: PACF / PET-CF / PP-CF / PA-GF PC-ABS / PP-GF / PPS-CF / PPS

With many superior features taken from Creator 3, FlashForge Creator 4 HT basically has large print volume, independent or simultaneous multi-production with IDEX structure, smart filament management, high precision printing and ability to work with LeVHOSS company or 3rd party production superior feature filaments. offers features.

Hunter, Creator 3 Pro, Foto 13.3, Focus 8.9, WaxJet 400, which supports Flashforge's rapid production in line with mass production and economies of scale, and Creator 4HT is offered as another product that diversifies the portfolio; Let's take a closer look at the product features:

Other Features of FlashForge Creator 4

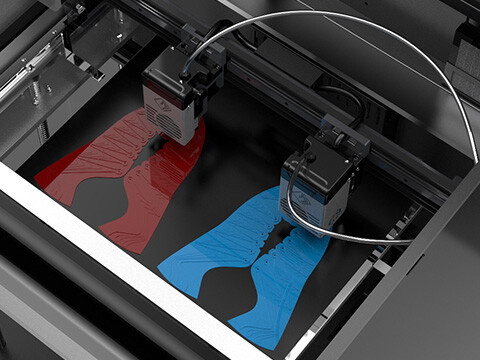

	With its dual extruder structure that can operate independently, if you wish, while one extruder is working on a model, the other extruder can be moved away from the model and filament overflow in the printing area can be prevented. Again, if you want, you can produce multiple copies of a model by operating the nozzles simultaneously!!!
For voluminous models: The print volume for Creator 4 is 400mm350mm500mm. 500mm height is sufficient to meet the printing needs of many manufacturers.
	Isolated Printing Process: The printing process in FF Creator 4 takes place in a completely closed printing room and the HEPA H13 filter filters 99% of the TVOC dust formed inside and the bad smell of the activated carbon filter!

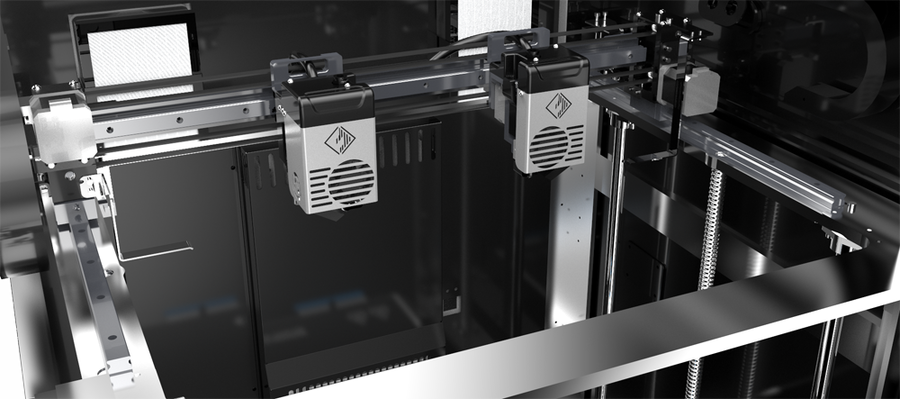

Precise operation: The guide shaft used for linear motion in the X and Y axes and the step control provided by it provide excellent precision and smooth operation. In addition, the S-type movement guarantees smooth control of the nozzle head and excellent print details.

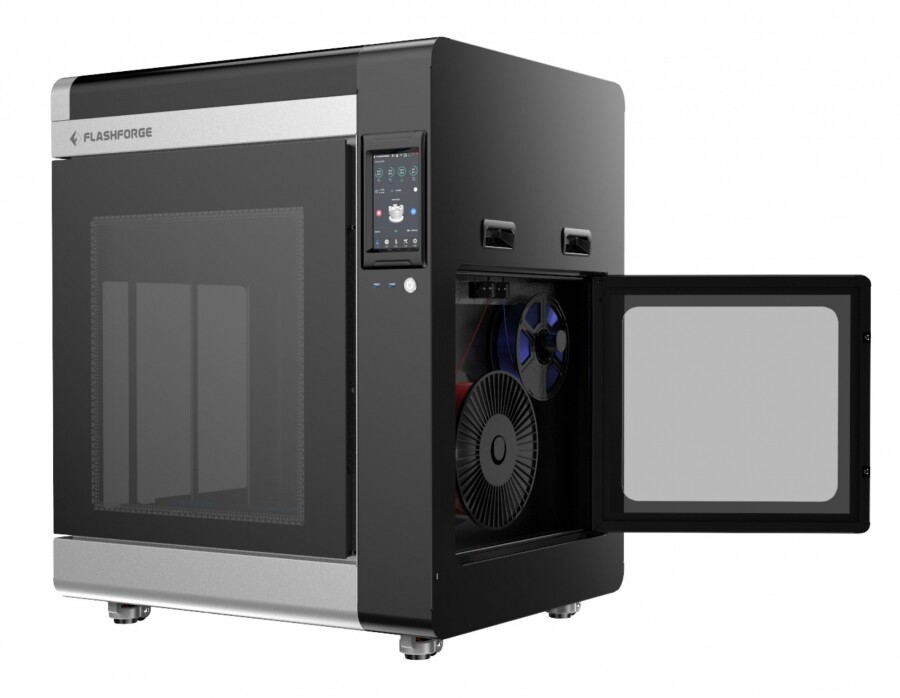

	Filament Management and chamber temperature: The temperature in the closed area is automatically adjusted according to the filament type. Even after the printing is finished, the temperature inside is adjusted automatically for optimal model cooling. If you do not want the temperature to be adjusted automatically, you can set the temperature yourself on the screen. Its advanced thermal control feature keeps the temperature of the print chamber at 65ºC throughout printing..
With FF Creator 4 you have many functions to monitor and control your printing status: o Detection sensor for lack of filament... o HD Internal camera monitoring... o Remote print control via Wi-Fi or Ethernet... o Remote control function manages exceptions during printing!

Creator 4-HT is compatible with PLA filaments (PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT) which are engineering plastics and produced for general use. However, the following material variety can be achieved by replacing the Extruder-HT with other Extruder heads:


To compare the large print volume of Creator 4 with other FlashForge models, you can review the image below:


Summary

PRINTING		DEVICE
o Number of Extruders: 2 (Interchangable IDEX) o Extruder on the product: Extruder-HT o Nozzle Diameter: 0.4mm(default) / 0.6mm / 0.8mm o Maximum Temperature for Extruder: 320℃ o Max Temperature for Platform: 120℃ o Print Speed: 200 mm/s o Print Volume: 400350500mm o Layer Resolution: 0.05-0.4 mm o Print Accuracy: ±0.2 mm o Print Mode: Duplicate, Dual Color. Mirror, Support o Supported Filaments: PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT		o Device Size：840mm x 675mm x 1050 o Device Weight: 90kg o Display: 7 Inch Touchscreen o Camera: 1 Piece o Air Filter: HEPA 13 o Internal Memory: YES o Filament sensor: YES o Pressure plate/table setting: Automatic + manual o Fail-Safe Operation in Power Failure: YES o Input Voltage: AC: 100 V/240V, 30A (50-60 Hz) o Power: 2320 W
SOFTWARE		OTHER
o Data Transfer: USB Disk/ WLAN/ Ethernet, Cloud o Software: Flashprint o Input file Format: 3MF / STL / OBJ / FPP / BMP / PNG / JPG / JPEG o Output File Format: Gx / G		o Operating Noise: <50dB o Operating Temperature: 15-30℃ o Filament: 1.75mm (1Kg + 2Kg) o Resume Printing: YES o Remote Camera Monitoring: YES o Language Support: EN / CN o Warranty: 12 months o Delivery time: immediate delivery from stock o Spare parts support: yes ( robotsepeti.com )
